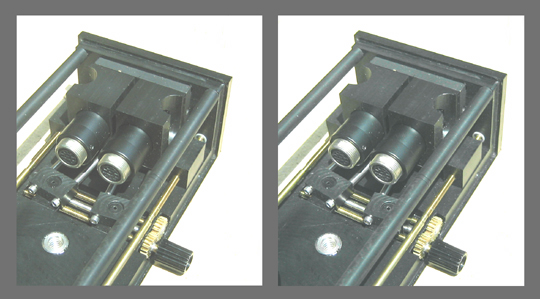

The stereoscopic camera is made with two modified "lipstick" cameras which allow adjustment of "coincidence" which is independent of the focus setting. Proper geometry is adhered to while allowing a true (x, y, and z) scaling of 3.75 times normal. Stereoscopic view of camera with cables removed to show some of the mechanism. The overall dimensions of the camera are: 3"(8cm) wide x 2"(5cm) tall x 5"(13cm) long with a 0.7"(17mm) spacing of the lenses.
