Microcirculatory monitoring plays an important role in diagnosis and treatment
of critical care patients. The Sidestream Dark Field (SDF) imaging devices have
been developed to visualize and support interpretation of the micro-vascular
blood flow. However, due to subsurface scattering within the tissue that embeds
the capillaries, transparency of plasma, imaging noise and lack of focus, it is
difficult to obtain reliable physiological data from SDF videos. Therefore, thus
far microcirculatory videos have been analyzed manually with significant input
from expert clinician. In this paper, we present a framework that automates and
reduces subjectivity of the process. It includes stages of video stabilization,
enhancement, and micro-vessel extraction, in order to automatically estimate
statistics of the micro blood flows from SDF videos. Our method has been
validated in critical care experiments conducted carefully to record the
microcirculatory blood flow in test animal subjects before, during and after
induced bleeding episodes, as well as to study the effect of fluid
resuscitation. Our method is able to extract microcirculatory measurements that
are consistent with clinical intuition and it has a potential to become a useful
tool in critical care medicine.
|
Publications
" Real-time Visual Analysis of Microvascular Blood Flow for Critical Care "
Chao Liu, Hernando Gomez, Srinivasa G. Narasimhan, Artur Dubrawski
Michael R. Pinsky and Brian Zuckerbraun
IEEE Conference on Computer Vision and Pattern Recognition (CVPR) 2015.
[PDF] [Poster]
" Real-time Micro-vascular Video Analysis "
Chao Liu, Hernando Gomez, Srinivasa G. Narasimhan, Artur Dubrawski,
Brian Zuckerbraun and Michael R. Pinsky
In submission for a journal.
[PDF]
|
Illustration
|
Sidestream Dark Field Imaging. (a) Portable SDF
imaging device used for microcirculatory monitoring. (b) One frame of the
microcirculatory video. (c) The LEDs, arranged and optically isolated around the
lens system, emit light optimized for red blood cell absorption.
|
|
The vessel skeletons are extracted from the minimal
image across the frames. First column: the first frames of the videos. Due to
subsurface scattering and transparency of plasma, it is hard to detect
capillaries from a single frame. Second column: denoised minimal image across
all the N frames. In our case N = 200. Third column: extracted vessel skeletons.
Fourth column: manually painted vessels. The index and status of subjects in
each row: Pig 50, before resuscitation; Pig 53,
end of baseline; Pig 60, end of baseline.
|
|
The first frame in the original video and the
motion-magnified video.
|
|

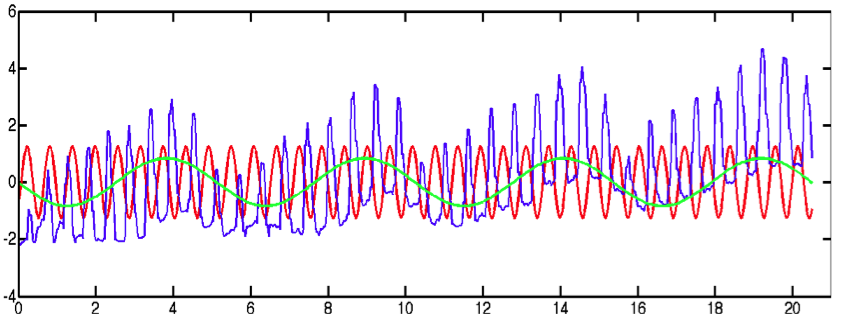

The averaged observed motions (blue) across the frame and their components.
Motion components due to heartbeat and breathing are colored in red and green
respectively. |
|
Blood flow velocity estimation. (a) The extracted vessel skeletons. The
vessel segment for which the flow velocity is estimated is colored in blue. (b)
The EPI image of the blue colored vessel segment in (a). (c) The Fourier
Transform of the EPI image. (d) The dominant orientation of the Fourier
Transform is plotted as the green line. The corresponding line showing the
dominant orientation in the EPI image is plotted in red in (b).
|
|
Setup of the experimental procedure. 18 pigs are observed carefully at various stages of bleeding and resuscitation.
|
|
The blood flow velocity distributions at
three key stages of pigs. Click the thumbnail image to view the velocity distributions
for different pigs.
|
|

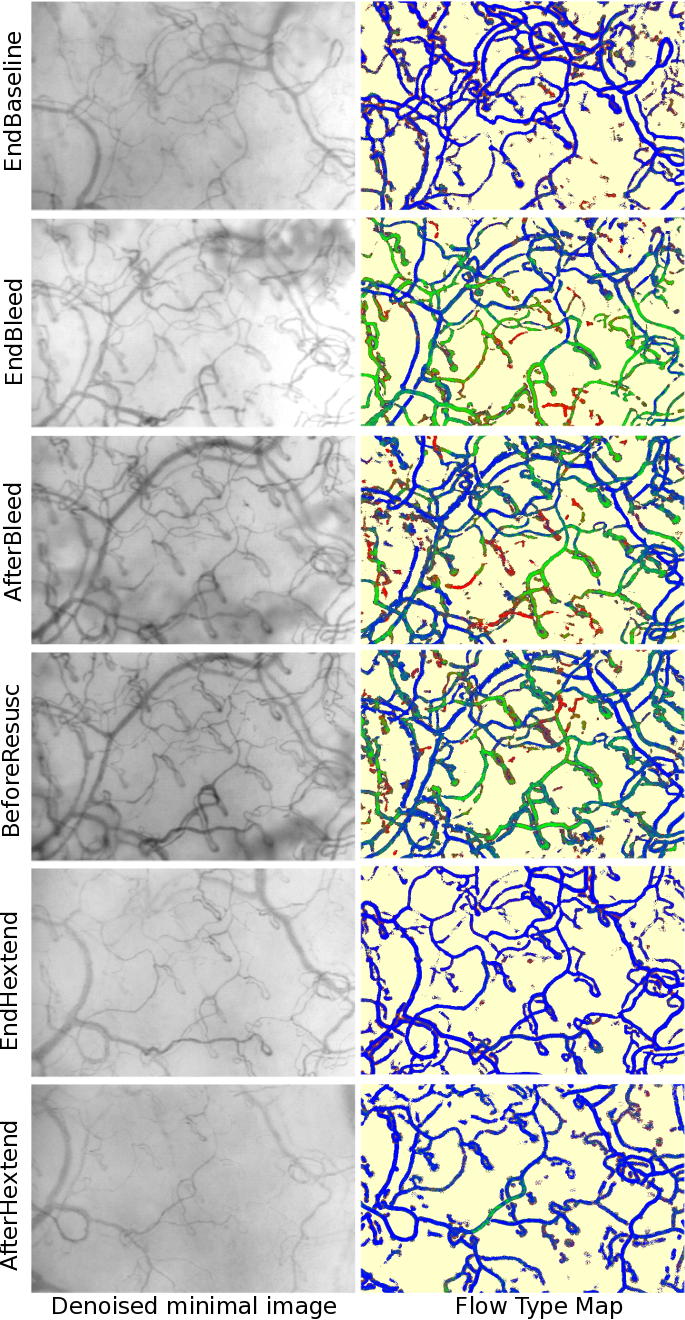

The blood flow type map for one pig before and after undergoing bleeding. Blue:normal flow;
Green:intermittent flow; Red:stopped flow; Yellow: non-vessel tissue. Click the thumbnail image for results for all stages.
|
|
Video
|
Because of imaging noise, relative motion between sensor and subjects,
low contrast due to sub-surface scattering, and lack of texture, conventional
methods heavily relied on the appearance features will not work for the
micro-vascular video.
|
Video stabilization process. The heartbeat and breathing are also estimated
during this process.
|
The vessel skeletons are extracted from the minimal image across the frames.
|
Blood flow velocity estimation.
|
The blood flow velocity distributions at three key stages of pigs.
|
|
