Python_multithreading

Python
Python
  • reference: Python 源码剖析
  • Python_multithreading
    • GIL与线程调度
    • Python线程的创建
    • Python线程的调度
    • Python子线程的销毁
    • Python线程的用户级互斥与同步
    • 高级线程库–threading

1.Python多线程机制

a.GIL与线程调度

b.初见Python Thread

c.Python线程的创建

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[threadmodule.c]
static PyObject* thread_PyThread_start_new_thread(PyObject* self, PyObject* fargs){
  PyObject* func, *args, *keyw = NULL;
  struct bootstate* boot;
  long ident;

  PyArg_UnpackTuple(fargs,"start_new_thread",2,3,&func,&args,&keyw);

  //创建bootstate结构
  boot = PyMem_NEW(struct bootstate, 1);
  boot->interp = PyThreadState_GET()->interp;
  boo->func = func;
  boot->args = args;
  boot->keyw - keyw;

  //初始化多线程环境.当Python启动时，是不支持多线程的
  PyEval_InitThreads(); /* Start the interpreter's thread-awareness */
  //创建线程
  ident = PyThread_start_new_thread(t_bootstrap,(void *)boot);
  return PyInt_FromLong(ident);
}
  • 建立多线程环境
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[pythread.h]
typedef void* PyThread_type_lock;

[ceval.c]
static PyThread_type_lock interpreter_lock = 0;  // GIL
static long main_thread = 0;

void PyEval_InitThreads(void){
  if(interpreter_lock)
    return;

  interpreter_lock = PyThread_allocate_lock();
  PyThread_acquire_lock(interpreter_lock,1);
  main_thread = PyThread_get_thread_ident();
}

[thread_nt.h]
PyThread_type_lock PyThread_allocate_lock(void){
  PNRMUTEX aLock;

  if(!initialized)
    PyThread_init_thread();
  aLock = AllocNonRecursiveMutex();
  return (PyThread_type_lock) aLock;

[thead.c]
void PyThread_init_thread(void){
  if(initialized)
    return;
  initialized = 1;
  PyThread__init_thread();
}

[thread_nt.h]
static void PyThread__init_thread(void) {}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
[thread_nt.h]
typedef struct NRMUTEX{
  LONG owned;
  DWORD thread_id;
  HANDLE hevent;
} NRMUTEX, *PNRMUTEX

[thread_nt.h]
PNRMUTEX AllocNonRecursiveMutex(void){
  PNRMUTEX mutex = (PNRMUTEX)malloc(sizeof(NRMUTEX));
  if(mutex && !InitializeNonRecursiveMutex(mutex)){
    free(mutex);
    Mutex = NULL;
  }
  return mutex;
}

BOOL InitializeNonRecursiveMutex(PNRMUTEX mutex){
  ...
  mutex->owned = -1; /* No threads have entered NonRecursiveMutex */
  mutex->thread_id = 0;
  mutex->hevent = CreadEvent(NULL,FALSE,FALSE,NULL);
  return mutex->hevent != NULL; /* True if the mutex is created */
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
//获得GIL
[thread_nt.h]
int PyThread_acquire_lock(PyThread_type_lock aLock, int waitflag){ //waitflag指示当GIL当前不可获得时，是否进行等待
  int success;
  success = aLock && EnterNonRecursiveMutex((PNRMUTEX) aLock, (waitflag == 1 ? INFINITE : 0)) == WAIT_OBJECT_0;
  return success;
}

DWORD EnterNonRecursiveMutex(PNRMUTEX mutex, BOOL wait){
  /* Assume that the thread waits successfully */
  DWORD ret;

  /* InterlockedIncrement(&mutex->owned) == 0 means no thread currently owns the mutex */

  if(!wait){
    if(InterlockedCompareExchange((PVOID *)&mutex->owned,(PVOID)0,(PVOID) -1) != (PVOID) - 1)
      return WAIT_TIMEOUT;
    ret = WAIT_OBJECT_0;
  }else{
    ret = InterlockedIncrement(&mutex->owned) ? WaitForSingleObject(mutex->hevent,INFINITE) : WAIT_OBJECT_0;
  }

  mutex->thread_id = GetCurrentThreadId(); /* we own it */
  return ret;
}
1
2
3
4
5
6
7
8
9
10
11
//PyThread_acquire_lock的逆运算PyThread_release_lock
[thread_nt.h]
void PyThread_release_lock(PyThread_type_lock aLock){
  LeaveNonRecursiveMutex((PNRMUTEX)aLock);
}

BOOL LeaveNonRecursiveMutex(PNRMUTEX mutex){
  /* We don't own the mutex */
  mutex->thread_id = 0;
  return InterlockedDecrement(&mutex->owned) < 0 || SetEvent(mutex->hevent);  /* Other threads are waiting, wake one on them up */
}

PyEval_InitThreads

  • 创建线程

  • 子线程的诞生

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
[threadmodule.c]
static PyObject* thread_PyThread_start_new_thread(PyObject* self, PyObject* fargs){
  PyObject* func, *args, *keyw = NULL;
  struct bootstate* boot;
  long ident;

  PyArg_UnpackTuple(fargs,"start_new_thread",2,3,&func,&args,&keyw);

  //创建bootstate结构
  boot = PyMem_NEW(struct bootstate, 1);
  boot->interp = PyThreadState_GET()->interp;
  boo->func = func;
  boot->args = args;
  boot->keyw - keyw;

  //初始化多线程环境.当Python启动时，是不支持多线程的
  PyEval_InitThreads(); /* Start the interpreter's thread-awareness */
  //创建线程
  ident = PyThread_start_new_thread(t_bootstrap,(void *)boot);
  return PyInt_FromLong(ident);
}

[thread.c]
/* Support for runtime thread stack size tuning.
  A value of 0 means using the platform's default stack size
  or the size specified by the THREAD_STACK_SIZE macro.
 */

 static size_t _pythread_stacksize = 0;

 [thread_nt.h]
 long PyThread_start_new_thread(void (*func)(void *), void* arg){
   unsigned long rv;
   callobj obj;

   obj.id = -1; /* guilty until proved innocent */
   obj.func = func;
   obj.arg = arg;
   obj.done = CreateSemaphore(NULL,0,1,NULL);

   rv = _beginthread(bootstrap,_pythread_stacksize,&obj); /* use default stack size */

   if(rv == (unsigned long) - 1){
     //创建raw thread 失败
     obj.id = -1;
   }else{
     WaitForSingleObject(obj.done,INFINITE);
   }

   CloseHandle((HANDLE)obj.done);
   return obj.id;
 }

 [thread_nt.h]
 typedef struct {
   void (*func)(void *);
   void *arg;
   long id;
   HANDLE done;
 } callobj;

callobj

1
2
3
4
5
6
7
8
9
10
11
12
13
[thread_nt.h]
static int bootstrap(void *call){
  callobj* obj = (callobj *)call;
  /* copy callobj since other thread might free it before we're done */
  //这里将得到函数t_bootstrap
  void (*func)(void*) = obj->func;
  void *arg = obj->arg;

  obj->id = PyThread_get_thread_ident();
  ReleaseSemaphore(obj->done,1,NULL);
  func(arg);
  return 0;
}

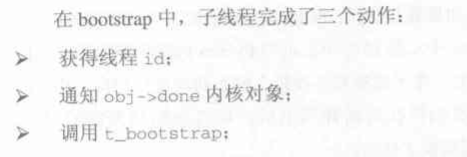

bootstrap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[threadmodule.c]
static void t_bootstrap(void* boot_raw){
  struct bootstate* boot = (struct bootstate *)boot_raw;
  PyThreadState* tstate;
  PyObject* res;

  tstate = PyThreadState_New(boot->interp);
  PyEval_AcquireThread(tstate);
  res = PyEval_CallObjectWithKeywords(boot->func,boot->args,boot->keyw);
  PyMem_DEL(boot_raw);
  PyThreadState_Clear(tstate);
  PyThreadState_DeleteCurrent();
  PyThread_exit_thread();
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[ceval.c]
void PyEval_AcquireThread(PyThreadState* tstate){
  if(tstate == NULL)
    Py_FatalError("PyEval_AcquireThread: NULL new thread state");
  //检查interpreter_lock,确保已经调用PyEval_InitThreads并创建了GIL
  assert(interpreter_lock);
  //获得GIL
  PyThread_acquire_lock(interpreter_lock,1);
  //在PyThreadState_Swap中更新指向“当前线程”的线程状态对象指针_PyThreadState_Current
  if(PyThreadState_Swap(tstate) != NULL)
    Py_FatalError("PyEval_AcquireThread: non-NULL old thread state");
}

[pystate.c]
PyThreadState* PyThreadState_Swap(PyThreadState* newts){
  PyThreadState* oldts = _PyThreadState_Current;
  _PyThreadState_Current = newts;
  return oldts;
}
  • 线程状态保护机制
1
2
3
4
5
6
7
8
9
10
[pystate.h]
typedef struct _ts{
  struct _ts *next;
  PyInterpreterState* interp;
  struct _frame* frame;
  int recursion_depth;
  ...
  int gilstate_counter;
  long thread_id;
} PyThreadState;
1
2
3
4
5
6
7
8
9
[thread.c]
struct key{
  struct key* next;
  long id;
  int key;
  void* value;
};

static struct key* keyhead = NULL;

tstate_list

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
[pystate.c]
static PyInterpreterState* autoInterpreterState = NULL;
static int autoTLSkey = 0;

void _PyGILState_Init(PyInterpreterState* i,PyThreadState* t){
  autoTLSkey = PyThread_create_key();  //TLS:Thread Local Store
  autoInterpreterState = i;
  /* Now stash the thread state for this thread in TLS */
  assert(PyThread_get_key_value(autoTLSkey) == NULL);
  _PyGILState_NoteThreadState(t);
  ...
}

static void _PyGILState_NoteThreadState(PyThreadState* tstate){
  if(!autoTLSkey)
    return;
  PyThread_set_key_value(autoTLSkey,(void *)tstate);
  tstate->gilstate_counter = 1;
}

[thread.c]
static PyThreadState_create_key(void){
  if(keymutex == NULL)
    keymutex = PyThread_allocate_lock();  //keymutex用来互斥对状态对象链表的访问
  return ++nkeys;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
[thread.c]
static struct key* find_key(int key,void* value){
  struct key* p;
  //获得当前线程的线程id，并锁住线程状态对象链表
  long id = PyThread_get_thread_ident();
  PyThread_acquire_lock(keymutex,1);
  //遍历线程状态对象链表，寻找key和id都匹配的元素
  for(p = keyhead; p != NULL; p = p->next){
    if(p->id ==id && p->key == key)
      goto Done;
  }
  //如果搜索失败，则创建新的元素，并加入线程状态对象链表
  p = (struct key *)malloc(sizeof(struct key));
  if(p != NULL){
    p->id = id;
    p->key = key;
    p->next = keyhead;
    keyhead = p;
  }
  Done:
  //释放锁住的状态对象链表
  PyThread_release_lock(keymutex);
  return p;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
[thread.c]
//查询操作
void* PyThread_get_key_value(int key){
  struct key* p = find_key(key,NULL);
  return p->value;
}

//插入操作
int PyThread_set_key_value(int key, void* value){
  struct key* p = find_key(key,value);
  return 0;
}

//删除操作
void PyThread_delete_key(int key){
  struct key*p ,**q;
  PyThread_acquire_lock(keymutex,1);
  q = &keyhead;
  while((p = *q) != NULL){
    if(p->key == key){
      *q = p->next;
      free((void *)p);
    }else{
      q = &p->next;
    }
    PyThread_release_lock(keymutex);
  }
}
  • 从GIL到字节码解释器
1
2
3
4
5
6
7
8
9
10
[pystate.c]
PyThreadState* PyThreadState_New(PyInterpreterState* interp){
  PyThreadState* tstate = (PyThreadState *)malloc(sizezof(PyThreadState));
  ...
  #ifdef WITH_THREAD
  _PyGILState_NoteThreadState(tstate);
  #endif
  ...
  return tstate;
}

当前活动的python线程不一定是获得了GIL的线程

当所有的线程都完成了初始化动作之后，操作系统的线程调度和Python的线程调度才会统一

进入Python解释器后才完成线程初始化(PyEval_EvalFrame)

d.Python线程的调度

  • 标准调度
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
//加入线程调度机制的PyEval_EvalFrameEx
[ceval.c]
/* Interpreter main loop */
PyObject* PyEval_EvalFrameEx(PyFrameObject* f){
  ...
  why = WHY_NOT;

  for(;;){
    ...
    if(--_Py_Ticker < 0){
      //在切换线程之前，重置_Py_Ticker为100,为下一个线程准备
      _Py_Ticker = _Py_CheckInterval;
      tstate->tick_counter++;
      if(interpreter_lock){
        //撤销当前线程状态对象，释放GIL，给别的线程一个机会
        PyThreadState_Swap(NULL);
        PyThread_release_lock(interpreter_lock);


        /*
        由于等待GIL而被挂起的子线程被操作系统的线程调度机制唤醒，从而
        进入PyEval_EvalFrameEx

        对于主线程，虽然这时它已经失去了GIL，由于没有被挂起，所以对于
        操作系统的线程调度机制，它是可以被再次切换为活动线程的

        当操作系统的调度机制将主线程切换为活动线程之后，主线程将执行PyThread_acquire_lock,主线程申请GIL，由于被子线程占有，
        主线程将自身挂起。

        从这时起，操作系统的线程调度不能再将主线程切换为活动进行,直到子线程释放GIL

        */


        //别的线程现在已经开始执行了，咱们重新在申请GIL，等待下一次被调度
        PyThread_acquire_lock(interpreter_lock,1);
        PyThreadState_Swap(tstate) != NULL;
      }
    }

    ...
  }
}

[ceval.c]
int _Py_CheckInterval = 100;
volatile int _Py_Ticker = 100;

e.Python子线程的销毁

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[threadmodule.c]
static void t_bootstrap(void* boot_raw){
  struct bootstate* boot = (struct bootstate *)boot_raw;
  PyThreadState* tstate;
  PyObject* res;

  tstate = PyThreadState_New(boot->interp);
  PyEval_AcquireThread(tstate);
  res = PyEval_CallObjectWithKeywords(boot->func,boot->args,boot->keyw);
  PyMem_DEL(boot_raw);
  PyThreadState_Clear(tstate);
  PyThreadState_DeleteCurrent();
  PyThread_exit_thread();
}

Python首先通过PyThreadState_Clear清理当前线程所对应的线程状态对象

1
2
3
4
5
6
7
8
9
10
//PyThreadState_DeleteCurrent释放GIL
[pystate.c]
void PyThreadState_DeleteCurrent(){
  PyThreadState* tstate = _PyThreadState_Current;
  _PyThreadState_Current = NULL;
  tstate_delete_common(tstate);
  if(autoTLSkey && PyThread_get_key_value(autoTLSkey) == tstate)
    PyThread_delete_key_value(autoTLSkey);
  PyEval_ReleaseLock();
}

Python最后通过PyThread_exit_thread完成各个平台上不同的销毁原声线程的工作

f.Python线程的用户级互斥与同步

  • 用户级互斥与同步

  • Lock对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[threadmodule.c]
static PyObject* thread_PyThread_allocate_lock(PyObject* self){
  return (PyObject *)newlockobject();
}

static lockobject* newlockobject(void){
  lockobject* self;
  self = PyObject_New(lockobject,&Locktype);
  self->lock_lock = PyThread_allocate_lock();
  return self;
}

[pythread.h]
typedef void* PyThread_type_lock;

[threadmodule.c]
typedef struct {
  PyObject_HEAD
  PyThread_type_lock lock_lock;
} lockobject;

[threadmodule.c]
static PyMethodDef lock_method[] = {
  {"acquire_lock",(PyCFunction)lock_PyThread_acquire_lock,...}
  {"acquire",(PyCFunction)lock_PyThread_acquire_lock,...}
  {"release_lock",(PyCFunction)lock_PyThread_release_lock,...}
  {"release",(PyCFunction)lock_PyThread_release_lock,...}
  {"locked_lock",(PyCFunction)lock_locked_lock,...}
  {"locked",(PyCFunction)lock_locked_lock,..}
  {NULL,NULL} /* sentinel */
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
//申请用户级的lock，这个申请在lock.acquire中完成，对应的C函数为lock_PyThread_acquire_lock
[threadmodule.c]
static PyObject* lock_PyThread_acquire_lock(lockobject* self,PyObject* args){
  //i中保存用户传入的参数，表示是否在lock资源不可用时将自身挂起，进行等待
  int i = 1;
  PyArg_ParseTuple(args,"|i:acquire",&i);

  Py_BEGIN_ALLOW_THREADS
  i = PyThread_acquire_lock(self->lock_lock,i)
  Py_END_ALLOW_THREADS
}

static PyObject* lock_PyThread_release_lock(lockobject* self){
  /* Sanity check: the lock must be locked */
  if(PyThread_acquire_lock(self->lock_lock,0)){
    PyThread_release_lock(self->lock_lock);
    PyErr_SetString(ThreadError,"release unlocked lock");
    return NULL;
  }

  PyThread_release_lock(self->lock_lock);
  Py_INCREF(Py_None);
  return Py_None;
}

g.高级线程库–threading

  • Threading Module 概述
1
2
3
4
5
6
7
[threading.py]
import thread

_start_new_thread = thread.start_new_thread
_allocate_lock = thread.allocate_lock
_get_ident = thread.get_ident
ThreadError = thread.error
1
2
3
4
5
[threading.py]
# Active thread administration
_active_limbo_lock = _allocate_lock()
_active = {} // _active[thread_id] = thread 已经创建子线程
_limbo = {}  //_limbo[thread] = thread 在未创建原生子线程
1
2
3
4
5
6
7
# 列举当前所有子线程的操作
[threading.py]
def enumerate():
  _active_limbo_lock.acquire()
  active = _active.values() + _limbo.values()
  _active_limbo_lock.release()
  return active
  • Threading 的线程同步工具
1
2
3
[threading.py]
_allocate_lock = thread.allocate_lock
Lock = _allocate_lock
  • RLock

可重入的Lock

  • Condition

需要一个Lock对象作为参数,否则将在内部自行创建一个RLock对象,提供了wait和notify语义

  • Semaphore

Semaphore对象内部维护着一个Condition对象,管理共享资源池

  • Event

  • Threading 中的 Thread

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
[threading.py]
class Thread(_Verbose):
  __initialized = False
  def __init__(self,group=None, target=None, name=None, args=(),kwargs={},verbose=None):
    ...
    self.__name = str(name or _newname())
    self.__started = False
    self.__stopped = False
    self.__block = Condition(Lock())
    self.__initialized = True

  def start(self):
    _active_limbo_lock.acquire()
    _limbo[self] = self
    _active_limbo_lock.release()
    _start_new_thread(self.__bootstrap,{})
    _sleep(0.000001)

  def run(self):
    if self.__target:
      self.__target(*self.__args,**self.__kwargs)

  def __bootstrap(self):
    try:
      self.__started = True
      _active_limbo_lock.acquire()
      _active[_get_ident()] = self
      del _limbo[self]
      _active_limbo_lock.release()
      try:
        self.run()
    finally:
      self.__stop()
      try:
        self.__delete()
      except:
        pass

  def __stop(self):
    self.__block.acquire()
    self.__stopped = True
    self.__block.notifyAll()
    self.__block.release()

  def join(self,timeout=None):
    self.__block.acquire()
    if timeout is None:
      while not self.__stopped:
        self.__block.wait()
    else:
      deadline = _time() + timeout
      while not self.__stopped:
        delay = deadline - _time()
        if delay <= 0:
          if __debug__:
            self._note("%s.join(): timed out",self)
          break
        self.__block,wait(delay)
      else:
        if __debug__:
          self._note("%s.joi(): thread stopped",self)
    self.__block.release()
Share
