Sundance::CellSetBase Class Reference

#include <CellSetBase.h>

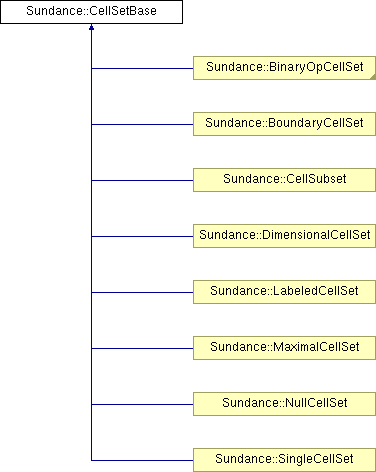

Inheritance diagram for Sundance::CellSetBase:

List of all members.

Public Methods

• CellSetBase ()

  empty ctor



• virtual ~CellSetBase ()

  TUVD.



• virtual bool contains (const Cell &cell) const=0

  determine if a given cell is contained in this set



• TSFHashtable< CellTopologyCode,
  TSFSmartPtr< TSFArray< CellBlock > > > getCellBlocks (const Mesh &mesh, TSFNonDupArray< CellTopologyCode > &cellType) const

  Get lists of cells organized into blocks of identical cell types.



• TSFSmartPtr< TSFArray< Cell > > getOrderedCells (const Mesh &mesh) const

  Get a list of cells, ordered according to the current reordering scheme.



• virtual XMLObject toXML () const=0

  write as XML



• virtual int dimension (const Mesh &mesh) const=0

  find the cell dimensions that should be searched to find cells in this set



• virtual bool equals (const CellSet &other) const=0

  test equality



• virtual bool lessThan (const CellSet &other) const=0

  test ordering



• TSFSmartPtr< TSFArray< int > > getCellOrdering (const Mesh &mesh) const

Static Public Methods

• bool & verbose ()

Protected Methods

• virtual TSFHashtable< CellTopologyCode,
  TSFSmartPtr< TSFArray< CellBlock > > > innerGetCellBlocks (const Mesh &mesh, TSFNonDupArray< CellTopologyCode > &cellType) const

  low-level routine to find a list of cell blocks



• virtual TSFSmartPtr< TSFArray<
  Cell > > innerGetOrderedCells (const Mesh &mesh) const

  low-level routine to find an ordered list of cells



Protected Attributes

• TSFHashtable< int, TSFHashtable<
  CellTopologyCode, TSFSmartPtr<
  TSFArray< CellBlock > > > > cellBlockList_

  cache of cell blocks



• TSFHashtable< int, TSFNonDupArray<
  CellTopologyCode > > cellTypeList_

  cache of cell types



• TSFHashtable< int, TSFSmartPtr<
  TSFArray< Cell > > > orderedCellList_

  cache of cell lists



---

Detailed Description

Base class for cell sets. CellSetBase objects are always used wrapped in a CellSet handle class.

Definition at line 30 of file CellSetBase.h.

---

Constructor & Destructor Documentation

Sundance::CellSetBase::CellSetBase (    )

virtual Sundance::CellSetBase::~CellSetBase (    )  [virtual]

---

Member Function Documentation

virtual bool Sundance::CellSetBase::contains (  const Cell &    cell )  const [pure virtual]

Implemented in Sundance::BoundaryCellSet, Sundance::CellSubset, Sundance::DimensionalCellSet, Sundance::ExclusionCellSet, Sundance::IntersectionCellSet, Sundance::LabeledCellSet, Sundance::MaximalCellSet, Sundance::NullCellSet, Sundance::SingleCellSet, and Sundance::UnionCellSet.

TSFHashtable<CellTopologyCode, TSFSmartPtr<TSFArray<CellBlock> > > Sundance::CellSetBase::getCellBlocks (  const Mesh &    mesh, TSFNonDupArray< CellTopologyCode > &    cellType )  const

This is for use in assembling work sets. When building a DOF map, use getOrderedCells() instead so that reordering is used.

TSFSmartPtr<TSFArray<Cell> > Sundance::CellSetBase::getOrderedCells (  const Mesh &    mesh )  const

For use in the DOF map builder. When building work sets, use getCellBlocks() instead because work sets require a list of cells of identical type.

virtual XMLObject Sundance::CellSetBase::toXML (    )  const [pure virtual]

Implemented in Sundance::BinaryOpCellSet, Sundance::BoundaryCellSet, Sundance::CellSubset, Sundance::DimensionalCellSet, Sundance::LabeledCellSet, Sundance::MaximalCellSet, Sundance::NullCellSet, and Sundance::SingleCellSet.

virtual int Sundance::CellSetBase::dimension (  const Mesh &    mesh )  const [pure virtual]

Implemented in Sundance::BinaryOpCellSet, Sundance::BoundaryCellSet, Sundance::CellSubset, Sundance::DimensionalCellSet, Sundance::LabeledCellSet, Sundance::MaximalCellSet, Sundance::NullCellSet, and Sundance::SingleCellSet.

virtual bool Sundance::CellSetBase::equals (  const CellSet &    other )  const [pure virtual]

Implemented in Sundance::BinaryOpCellSet, Sundance::BoundaryCellSet, Sundance::CellSubset, Sundance::DimensionalCellSet, Sundance::LabeledCellSet, Sundance::MaximalCellSet, Sundance::NullCellSet, and Sundance::SingleCellSet.

virtual bool Sundance::CellSetBase::lessThan (  const CellSet &    other )  const [pure virtual]

Implemented in Sundance::BinaryOpCellSet, Sundance::BoundaryCellSet, Sundance::CellSubset, Sundance::DimensionalCellSet, Sundance::LabeledCellSet, Sundance::MaximalCellSet, Sundance::NullCellSet, and Sundance::SingleCellSet.

TSFSmartPtr<TSFArray<int> > Sundance::CellSetBase::getCellOrdering (  const Mesh &    mesh )  const

Reimplemented in Sundance::MaximalCellSet.

bool& Sundance::CellSetBase::verbose (    )  [inline, static]

Definition at line 71 of file CellSetBase.h.

virtual TSFHashtable<CellTopologyCode, TSFSmartPtr<TSFArray<CellBlock> > > Sundance::CellSetBase::innerGetCellBlocks (  const Mesh &    mesh, TSFNonDupArray< CellTopologyCode > &    cellType )  const [protected, virtual]

Reimplemented in Sundance::CellSubset, and Sundance::LabeledCellSet.

virtual TSFSmartPtr<TSFArray<Cell> > Sundance::CellSetBase::innerGetOrderedCells (  const Mesh &    mesh )  const [protected, virtual]

Reimplemented in Sundance::BoundaryCellSet, Sundance::CellSubset, Sundance::LabeledCellSet, and Sundance::MaximalCellSet.

---

Member Data Documentation

TSFHashtable<int, TSFHashtable<CellTopologyCode, TSFSmartPtr<TSFArray<CellBlock> > > > Sundance::CellSetBase::cellBlockList_ [protected]

Definition at line 84 of file CellSetBase.h.

TSFHashtable<int, TSFNonDupArray<CellTopologyCode> > Sundance::CellSetBase::cellTypeList_ [protected]

Definition at line 87 of file CellSetBase.h.

TSFHashtable<int, TSFSmartPtr<TSFArray<Cell> > > Sundance::CellSetBase::orderedCellList_ [protected]

Definition at line 90 of file CellSetBase.h.

---

The documentation for this class was generated from the following file:

• CellSetBase.h

---
