In all of the the following images, Nomad's starting point is in the center of the spiral.

For this first test, the spiral pattern did not include any path following algorithm, but just changed the turning radius at specific points. Due to Nomad's delays in reaching requested turning configurations, plus the limited discrete turning radii which were allowed, the pattern did not turn out very well.

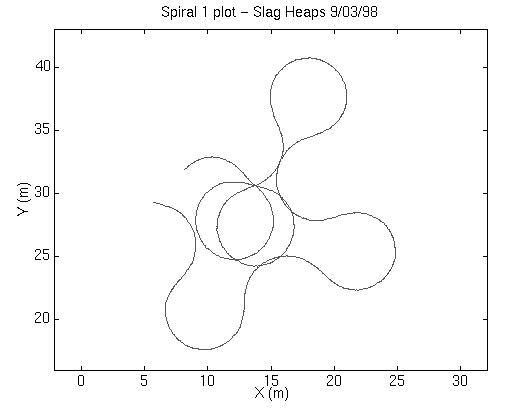

A path following algorithm was introduced, but the correction gain factors were apparently wrong.

In this case, Nomad did not recognize when it had reached an endpoint -- the point where the turning radius should be increased (every half of a circle). The robot kept driving at the same turning radius, thus making a nearly perfect cirle -- which is nice, but not what I wanted.

Nomad did better here, but the turning radius selected (out of the discrete allowed radii) wasn't quite large enough, and the path following algorithm was still not functioning.

This one was pretty good. I think it was only luck, though. I still didn't have the path following algorithm working properly.

The path following algorithm was in place, but the correction gain was not right for the speed Nomad was traveling (0.25 m/s), causing large oscillations around the proper position. However, I think the pattern looks pretty cool.

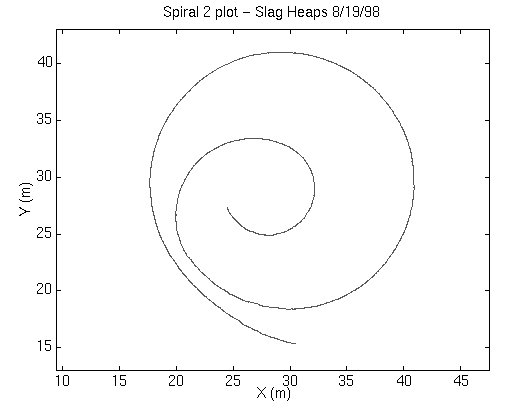

I slowed Nomad down to 0.15 m/s, and this time the combination of correction gain and speed was just right.

I tried it again the next week just to make sure, and yes, it still worked.
