Team-aware Robotic Demining Agents for Military Simulation
Gita Sukthankar and Katia Sycara
Robotics Institute
Carnegie Mellon University
Pittsburgh, PA 15213
gitars@cs.cmu.edu
Abstract:
In this paper, we describe a robotic demining system developed
as part of an multiagent application (AgentStorm) for assisting human
commanders in command and control scenarios run in the ModSAF
(Modular Semi-Automated Forces) simulation environment. The robotic
demining agents cooperatively clear paths, enabling simulated forces to
breach minefields. The AgentStorm system is composed of 25+ communicating
software components developed with the RETSINA agent architecture; it was
successfully demonstrated for military observers in November 1999.
Within the demining domain, we explore different multirobot cooperation and
communication strategies. Previous work suggests that a homogeneous
strategy should perform well in this domain, given its similarity to other
foraging-type tasks. However we show that robots using a
simple homogeneous approach have difficulty completing the task due to high
inter-robot interference. We suggest that the proper way to approach the
problem of interference is to make the the robots more ``team-aware''; each
robot plans its strategy based on assumptions about what its teammates are
doing and current sensor data. This approach works well and substantially
outperforms the simple homogeneous approach. Although this type of global
optimization can become intractable for large numbers of robots, we present
an efficient algorithm that only considers local interactions.
Although real-world solutions for robotic demining have not as yet
been demonstrated, multirobot systems will clearly yield significant
benefits over a single robot, given the extremely hazardous nature of
the domain [JP1999]. Having multiple robots adds a desirable
redundancy to the system, as well as potentially reducing the time
required to clear an area if the robots are deployed effectively.
In this paper, we describe a software implementation of a multirobot
demining system that was deployed as part of a larger multiagent system,
AgentStorm, to assist human commanders in command and control scenarios.
Simulated robotic demining agents coordinate to breach a path through
a minefield; demining is modeled as a distributed optimization problem
in which the robots strive to minimize an abstract cost function.
Although researchers have drawn comparisons between robot demining and
foraging [Goldberg & Mataric1997], path breaching cannot be modeled as a simple
foraging task because the goal of the exercise is not to optimize
on number of mines removed but to assure coverage of a connected path.
An overeager forager would seek the section of the minefield with the
thickest mine density, and hence the most potential reward, rather than
finding paths that avoid mined areas.
To date, most of the demining research effort has been applied towards
humanitarian demining, the process of systematically clearing unused
minefields without the hazard or time pressure of being in a combat
zone [Havlík & Licko1998]. Since these minefields are often located near
civilian homes
or agricultural areas, the usual military expedient of detonating
the mines with explosives or plows is undesirable. Another related
problem is minefield mapping, which is very similar to many cooperative
mapping applications in which the robots must consider tradeoffs between
effectively covering an area using redundant scans by multiple robots
or spreading out to cover area as quickly possible. In this paper, we
explore the problem of minefield breaching, which is often done under
combat conditions; the goal of breaching is to clear a path through the
minefield large enough to move troops through [DeTeC1997] Usually
breaching is performed when speed is of the essence and there is insufficient
time to clear the entire field before an upcoming engagement.
AgentStorm is a multiagent system designed to handle tank platoon movement
at a tactical level in military command and control scenarios. Using the
AgentStorm system, commanders can plan and execute joint operations in
the ModSAF simulation environment [Jones1999]. AgentStorm accepts
input through a speech recognition interface agent (incorporating the
CMU Sphinx recognizer [Placeway et al.
1997]) that captures salient features
from a human mission briefing; each commander involved in the scenario
interacts with a mission agent that plans the platoon's movement based on
information from the briefing and other supporting agents. Route planning
in AgentStorm accounts for factors such as terrain/vehicle interactions,
the desirability of having commanders use mutually reinforcing routes,
and negative constraints such as minefields. In the event of unforeseen
occurrences, the mission agents replan using the most current information.
AgentStorm was successfully demonstrated for military observers in
November 1999 (CMU ONR MURI Demo). The robotic demining agents and
supporting software described in this paper were designed as AgentStorm
components but can also function in a stand-alone mode.

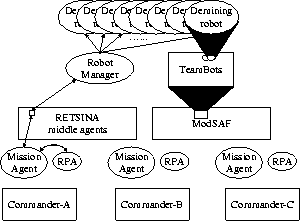

Figure: A partial layout of the AgentStorm multiagent
system. Tactical tank platoon movement is visualized using the
ModSAF simulator; minefield breaching is modeled using TeamBots and
additional mine-related sensors, robots, and obstacles developed
for AgentStorm. Communication and services are provided by the
RETSINA infrastructure. In this example, four agents coordinate
to help a human tank commander find a suitable route to reach his
rendez-vous point. Commander A's mission agent sends constraints
derived from his briefing to the route planning agent (RPA),
which calculates the best route based on terrain and vehicle type.
The route returned is not suitable for the mission agent's purposes
so the mission agent acts to remove the route constraint by asking
the Robot Manager to clear the minefield constraining the route
and impeding the progress of the tanks.
The Robot Manager acts as a bridge between the RETSINA [Sycara1998]
software agents and the TeamBots robotic agents handling tasks such as:
- deploying the robots;
- maintaining a global map of the minefield;
- handling monitoring queries from RETSINA agents about the state of
the minefield;
- handling single shot queries about the state of the minefield
and the robots.
The Robot Manager monitors the progress of the demining robot simulation
and reports to all subscribers (usually Mission Agents) when a path
has been successfully cleared. Although the Robot Manager governs
communications outside the TeamBots simulation, the coordination is
decentralized and takes place at the individual robot control system
level, rather than being handled by a central planner.

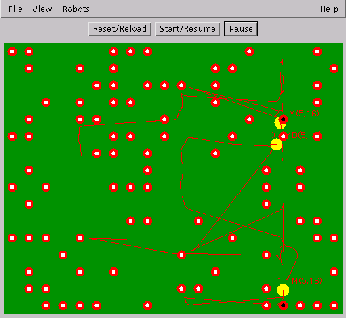

Figure: The Robot Manager displays the merged record of
all robotic exploration: mined areas are displayed in red; unknown
regions in white; safe areas are blue, and defused mines are marked
in green. Additionally the Robot Manager relays commands from RETSINA
agents to the robots and can act as an intermediary for inter-robot
communication.
The demining robots are responsible for clearing a direct vertical path
between the top and bottom edges of the minefield. At each time step,
robots must select one of three possible actions:
- move:
-
the robot moves towards a target cell, aiming to perform
either a scan or a defuse action on arrival.
A behavior-based robot controller plans the path, and obstacle
avoidance is achieved through a swirling behavior [Arkin & Balch1997].
- scan:
-
the (stationary) robot locates mines concealed in the current
cell. Scanning is not instantaneous, and the difficulty is
abstractly modeled as a time cost. The robot may elect to abort
its scan based upon communication with its peers, in which case
no information about the current cell is obtained.
- defuse:
-
the (stationary) robot removes the mines in the current cell.
Defusing is typically more time-consuming than scanning. As for
scan, an aborted defuse action is assigned no partial
credit. Thus, robots must weigh their desire to complete the
current task with the goal of helping their peers.
By varying the costs associated with each action, we can model the
characteristics of different robotic deminers. For instance, when the
cost of scanning is high, strategies that involve a thorough exploration
of the minefield become less feasible. Conversely, when defusing is
expensive, robots are encouraged to explore their environment before
focusing on a common path containing few mines. The risk of accidental
mine detonation, leading to robot loss, can also be represented in the
simulation but is not further discussed in this paper. We assume that
low-level robot sensing and navigational issues are handled robustly
and focus on the high-level problems of cooperation, communication,
and task allocation.
The robotic demining problem shares characteristics with the
consume and graze tasks described in [Balch & Arkin1995].
Robots individually explore unknown areas to identify low-cost paths
(paths with fewer cells to be defused), before focusing on the most
promising candidates and ``consuming'' the mines.
The AgentStorm system was built using the RETSINA
agent architecture, which provides communication infrastructure and
services useful for distributed systems. agents were developed in
a number of programming languages (Java, C++, and Perl) and deployed
on several operating systems (Windows 95/98, Linux, Solaris, PalmOS).
all agents communicate using the KQML [Labrou & Finin1997] ACL and register with
the RETSINA agent name server.
The ModSAF military simulator is an interactive, high resolution, entity
level simulation that represents combined arms tactical operations up to
the battalion level; it is commonly used as an aid in military training
exercises [STRICOM1999]. ModSAF simulates an extensive list of entities
including fixed and rotary wing aircraft, ground vehicles, dismounted
infantry, and additional special models such as howitzers, mortars,
minefields and environmental effects. simulated entities can behave
autonomously, that is they can move, fire, sense, communicate, and react
without operator intervention [Jones1999].
For modeling the activity of the demining robots, we chose the TeamBots
simulator for robotic agents [Balch & Ram1998]. TeamBots is a Java
simulator that has been used successfully in domains such as robotic
soccer and foraging tasks. In addition to the simulation environment,
TeamBots includes hardware interfaces and classes for driving popular
small robots such as the Nomad 150. Using TeamBots one can define
simulated sensors and actuators to suit any real robot system. Although
the demining robots could have been represented as specially designed
entities within the ModSAF simulation, simulating in TeamBots was more
effective because: (1) the other agents were using ModSAF with a distance
scale appropriate for platoon level maneuvers; (2) the same robot control
systems can be tested in the TeamBots simulation and in hardware without
any modifications. TeamBots is a kinematically realistic simulator,
capable of modeling sensor noise and positional uncertainty if the
simulated sensors are defined appropriately.
Demining robots are modeled as a subclass of the Nomad 150 foraging
robot in the Java based TeamBots environment.
All robots are assumed to have the following capabilities:
- positional encoders:
- gives robot position in absolute world
coordinates;
- kin sensor:
- detects other robots within a certain range;
- obstacle sensor:
- detects obstacles within a certain range;
- mine sensor:
- detects mines within a specified local area.
Sensor error is not explicitly modeled by the simulation environment,
and mines do not impede a robot's movement. Currently the only obstacles
in the simulated environment are other robots.
Each robot translates its sensor readings into a grid-based coordinate
system for mapping the minefield. Cells are marked as being
unexplored, safe, mined, or defused, and each
robot maintains its own version of this map.
Inter-robot communication is handled through a socket-based communication
server (RoboComm) external to the simulation environment. Through
the server, robots can broadcast or unicast serialized Java objects to
each other. The communication medium is identical to that used by real
robots, and failures occasionally occur if the server is accidentally
shutdown or buffers overflow. At periodic intervals, robots broadcast
their internal maps to the other robots and to the Robot Manager;
communicated maps are merged with information derived from personal
exploration (internal maps) to form more comprehensive world maps.
On every time step, robots identify target positions based on their
current knowledge about the minefield. Once the robot arrives at its
target location, it proceeds to either scan the cells for mines, or to
defuse previously marked mines in its cell. Obstacle avoidance during
path execution is implemented as a swirling behavior [Arkin & Balch1997].
The AgentStorm system is composed of 25+ communicating software entities,
designed to assist the human commanders in playing wargame scenarios in
the ModSAF simulation environment. The software modules can be grouped
into four basic categories:
- RETSINA infrastructure (middle agents);
- human interface agents;
- ModSAF related agents;
- specialized task agents.
The RETSINA [Sycara1998] architecture includes a group of services
or ``middle agents'' useful for developers of distributed systems.
These resources include: Agent Name Server, Matchmaker, DemoDisplay,
Logger, and Launcher. Agent lookups can be performed using the Agent
Name Server, which maintains a simple address listing (machine and port)
for all agents, and the more sophisticated Matchmaker, which allows agents
to perform lookups based on services, rather than name, using the LARKS
advertisement language. The DemoDisplay is a 2-D visualization system
for dynamically showing interactions between agents, and the logger
keeps records of agent activity. The Agent Launcher is a specialized set
of startup scripts for launching agents in the correct order, based on
agent dependencies prespecified by the programmer in configuration files.
Humans interact with the AgentStorm system through a small group of agents
with specialized user interfaces: speech recognition agents and PalmSAF.
Commanders use the speech recognition agent to brief their mission agents
with instructions for the scenario. The voice recognition agent uses
the Sphinx voice recognition system [Placeway et al.
1997] to submit questions
to Nacodae [Breslow & Aha1997], the Navy's Case Based Reasoning system.
PalmSAF is an interface to the route planning system developed for the
PalmPilot(TM) PDA, suitable for use by a foot soldier.
Specialized software modules were developed to allow agents to
interact with the ModSAF simulation system. A suite of CGI scripts
was created to allow remote manipulation of ModSAF entities and
a ModSAF extension was developed for exporting screen shots as
ModSAF PostScript files. The screen shots were analyzed by
a visual recognition agent which provided the mission agents with
current platoon position information.
Much of the work of AgentStorm is performed by specialized task
agents such as the Mission Agent and the Route Planner Agents (RPAs).
The Mission Agent uses the RETSINA hierarchical task network planner
with some modifications to accommodate team planning, using the Joint
Persistent Goal teamwork model [Cohen & Levesque1997]. Routes are planned using the
Route Planner Agents, which are capable of providing least cost paths for
different cost metrics (e.g., time, fuel) according to specified positive and
negative constraints.
When designing the multirobot demining system, we considered issues such
as:
- What type of movement strategy should the robots adopt when clearing
the minefield?
- Should the robots be behaviorally identical (homogeneous) or
specialized based on unique ID number (heterogeneous)?
- How should the robots communicate information?
In this paper, we describe the results of testing two different
homogeneous strategies and four communication protocols.
To efficiently clear the minefield, each robot independently estimates
the expected cost of clearing all possible vertical paths and selects
the path with the lowest cost. These estimates are based on the robot's
current belief about the world, acquired either through sensor readings,
or through communication with its peers. Since robots are aware of the
relative time cost of all actions, the cheapest path can be expressed as:
where:
To calculate p, the probability of finding a mine in an unknown square,
robots are initialized with a prior belief of mine frequency expressed
as a pseudocount, that is updated during the task to more accurately
reflect the results of exploration:
where:
The system currently assumes that mines are uniformly distributed over
the minefield; a single parameter is sufficient to model such a
distribution. In many real minefields, where the mines are scattered
by truck or plane, the distribution can be better modeled as a mixture of
Gaussians. Our model is currently being extended to incorporate locally
weighted regression [Atkeson, Moore, & Schaal1997] to better exploit this domain knowledge.
Figure: Using a simple homogeneous strategy, the
resulting task partition is inefficient and results in high interference
between robots as different robots attempt to demine the same square.
Inter-robot interference often prevents the robots from successfully
clearing a path. This run was performed with the following simulation
parameters: robots=3, mines=100, full broadcast protocol,
defuse=1000, scan=10, move=1
For the team optimization strategy, each robot models the decision-making
process of its nearest peers. Since robots outside this neighborhood are
less likely to interfere the robot's goal, their impact on the choice of
next action is not considered. For each teammate within this neighborhood
the robot determines whether the teammate is also heading for its chosen
column. This calculation can be performed in O(K) time for K neighbors
and creates a list of potential interference points. Each robot attempts
to find an optimal assignment of peers to the cells in chosen column, based
solely upon its beliefs of their internal states. The obvious method for
doing this is to exhaustively enumerate all possible permutations of
robots and grid cell assignments:
Clearly this strategy scales poorly with the number of column cells.
Fortunately the same result can be calculated far more efficiently.
A robot need only consider it's K best choices rather than all N cells,
because it can never be assigned to a worse option. This enables us to
determine the optimal solution while only considering
potential
assignments.
Figure: By making the robots ``team aware'', the resulting
task partition between robots is more efficient, since robots select
non-conflicting target destinations. This run was performed with the
following simulation parameters: robots=3, mines=100, full broadcast protocol,
defuse=1000, scan=10, move=1
In the experiments described in this paper, the robots used one of four
communication strategies:
- no communication;
- communication only with nearby robots;
- a central manager (with time delay);
- unlimited range broadcast.
In the AgentStorm application, all communication is relayed through
the Robot Manager.
Here we present the results of two groups of experiments:
- an evaluation of different communication protocols;
- a comparison of the simple and team-aware homogeneous strategies.
Simulations were initialized with all robots placed at the bottom of the field
at the largest possible dispersion to minimize interference. Since the
simulation was completely deterministic, only one run of each experimental
condition was performed. The following parameters were used:
Preliminary results show no significant time differences between
the communication strategies. Using the simple homogeneous strategy,
robots are unable to coordinate effectively to focus on a single
path. From direct observation, it appears that in the full broadcast mode,
robots converge on one path but do not cooperate to defuse mines in
parallel. Often while one robot is defusing a mine, other robots are
heading towards the same square. In the worst case, the robots interfere
with each other and prevent the task from being completed; with
no communication, interference is not a problem and the robots always
complete the task.
Table: In the first experiment, different communication
protocols are compared using three robots and the simple homogeneous
strategy. The evaluation metric used is the number of simulated time steps
required to clear a path. All results given are for the 3 robot
condition.
One possible way to reduce interference is to use the `team-aware'
homogeneous strategy, as described earlier. In the second experiment,
we compare the performance of both strategies. Unsurprisingly,
the `team-aware' strategy yields the greatest benefit in the
scenario of maximum interference.

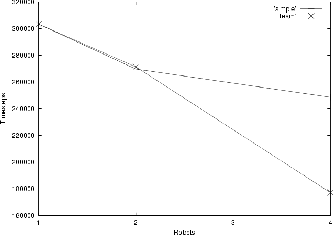

Figure: In the second experiment, the simple
homogeneous approach is tested vs. the more computationally intensive
`team-aware' strategy with 1-4 robots. The `team-aware' strategy yields the
most benefit in the four robot condition, where the simple homogeneous
robots suffer from the maximum interference.
Although multirobot systems are often cited as being intrinsically more
robust than a single robot by virtue of redundancy, fault tolerance
is not a natural byproduct of duplication but only emerges through
careful design. Using the simple homogeneous algorithm, multiple robots
often dismally fail to clear a path, whereas a single robot consistently
succeeds. Unfortunately, a multirobot system cannot always be created
by cloning a group of single robots programmed for the same task.
There has to be some awareness, either on the part of the robots or
the system designer, of the role that other team members will play in
completing the task. Unless the global task is somehow partitioned among
the robots, they will either interfere with each other or converge on
a sub-optimal division of labor.
Heterogeneity, either behavioral or functional, can serve as prior
agreement on labor division. Functional heterogeneity usually means that
not all the robots are capable of performing all the tasks, whereas
behavioral heterogeneity occurs when not all the robots are interested
in performing the same section of the task, at least not at the same time.
This inhibits SPST (same place, same time) interference, as described
in [Goldberg & Mataric1997].
From a system designer's point of view, the simplest form of heterogeneity
to introduce into a multirobot system is to have robots include their
ID numbers in the decision making process. The use of ID numbers can
facilitate the conflict resolution problem immensely and reduce SPST
interference since robots can be assigned temporal priorities based on
ID numbers (pack strategy) or restricted to separate spatial regions
(territories) [Fontan & Mataric1998]. Multirobot systems can also possess a
type of pseudo-heterogeneity--due to variance in starting condition
(e.g., robot placement) each robot will have different preferences
about task division. Temporal communication lags can also create
enough robot dissimilarities to prevent clumping and interference
(see Figure 3).
Generally, most multirobot systems have implemented one of the following
strategies for handling task allocation:
- central planner:
- a centralized decision maker that assigns tasks
to robots.
- negotiation:
- robots can negotiate to claim tasks. In the simplest
protocol, ``first-come, first-serve'', robots can claim tasks with
a mutex that prevents other robots from attempting to perform the
same task.
- heterogeneity:
- due to behavioral or functional dissimilarity,
robots have preferences for different sections of the task.
- pseudo-heterogeneity:
- due to situational dissimilarity, robots
gravitate towards different tasks.
- teamwork:
- robots maintain mental models of what their teammates are
doing and plan their own strategy accordingly
Homogeneous systems are well suited for using teamwork since it's much
easier for a a homogeneous system to ``model'' its fellow teammates.
This approach shares some similarities with the central planner method,
although it is often computationally faster since each robot only has to
consider the actions of a subset of its peers, rather than the actions
of the entire team.
In this paper, we have addressed the following issues in cooperative
multirobot systems:
- explored strategies for solving the multi-robot interference problem;
- examined the impact of communication protocols on interference;
- proposed a ``team-aware'' homogeneous solution for reducing
interference.
This research was integrated into the framework of a large-scale
real-world military simulation system.
Our future work goals include:
- porting multirobot demining strategies to hardware robot platforms;
- incorporating more sophisticated models for minefield distributions;
- probabilistic reasoning of peer strategies based on noisy information.
We thank Rahul Sukthankar, Matt Mullin, and the RETSINA research group.
References
- Arkin & Balch1997
-
Arkin, R., and Balch, T.
1997.
AuRA: Principles and practice in review.
Journal of Experimental and Theoretical Artificial Intelligence
9.
- Atkeson, Moore, & Schaal1997
-
Atkeson, C.; Moore, W.; and Schaal, S.
1997.
Locally weighted learning.
AI Review 11.
- Balch & Arkin1995
-
Balch, T., and Arkin, R.
1995.
Communication in reactive multiagent robotic systems.
Autonomous Robots 1(1).
- Balch & Ram1998
-
Balch, T., and Ram, A.
1998.
Integrating robotics research with JavaBots.
In Working notes of the AAAI 1998 Spring Symposium.
- Breslow & Aha1997
-
Breslow, L., and Aha, D.
1997.
NaCoDAE: Navy conversational decision aids environment.
Technical Report AIC-97-018, Naval Research Laboratory, Navy Center
for Applied Reserch in Artificial Intelligence.
- Cohen & Levesque1997
-
Cohen, R., and Levesque, H.
1997.
Confirmation and joint action.
In Proceedings of the IJCAI.
- DeTeC1997
-
DeTeC.
1997.
Demining robots and vehicles: Military breaching and mechanical mine
clearance.
<http://diwww.epfl.ch/w3lami/detec/rodemine.html#breaching>.
- Fontan & Mataric1998
-
Fontan, M., and Mataric, M.
1998.
Territorial multi-robot task division.
IEEE Transactions on Robotics and Automation 15(5).
- Goldberg & Mataric1997
-
Goldberg, D., and Mataric, M.
1997.
Interference as a tool for designing and evaluating multi-robot
controllers.
In Proceedings of AAAI.
- Havlík & Licko1998
-
Havlík, S., and Licko, P.
1998.
Humanitarian demining: The challenge for robotic research.
The Journal of Humanitarian Demining 2(2).
<http://www.hdic.jmu.edu/hdic/journal/2.2/features/havlik.htm>.
- Jones1999
-
Jones, T.
1999.
ModSAF: Modular semi-automated forces.
<http://www.modsaf.org/publicmodsaf1.html>.
- JP1999
-
JP.
1999.
Joint doctrine for barriers, obstacles, and mine warfare.
<http://www.dtic.mil/doctrine/jel/new_pubs/jp3_15.pdf>.
- Labrou & Finin1997
-
Labrou, Y., and Finin, T.
1997.
A proposal for a new KQML specification.
Technical Report TR CS-97-03, University of Maryland Baltimore
County.
- Placeway et al.
1997
-
Placeway, P.; Chen, S.; Eskenazi, M.; Jain, U.; Parikh, V.; Raj, B.;
Ravishankar, M.; Rosenfeld, R.; Seymore, K.; Siegler, M.; Stern, R.; and
Thayer, E.
1997.
The 1996 HUB-4 SPHINX-3 system.
In Proceedings of the ARPA Speech Recognition Workshop.
- STRICOM1999
-
STRICOM.
1999.
Directorate for research and engineering.
<http://www.stricom.army.mil/STRICOM/E-DIR/ES/MODSAF/>.
- Sycara1998
-
Sycara, K.
1998.
Multiagent systems.
AAAI AI Magazine 19(2).
Team-aware Robotic Demining Agents for Military Simulation
This document was generated using the LaTeX2HTML translator Version 96.1 (Feb 5, 1996) Copyright © 1993, 1994, 1995, 1996, Nikos Drakos, Computer Based Learning Unit, University of Leeds.
The command line arguments were:
latex2html -split 0 -no_reuse iaai00.tex.
The translation was initiated by Gita Sukthankar on Wed Feb 2 00:01:21 EST 2000
Gita Sukthankar
Wed Feb 2 00:01:21 EST 2000
;
;
.
;
;
;
.
