Contents

13.1 Single Inheritance of IDL Interfaces

13.1.1 The Client: IDL Generated Types

13.1.2 Usage from a Client

13.1.3 The Server: IDL Generated Types

13.2 Multiple Inheritance of IDL Interfaces

13.1 Single Inheritance of IDL Interfaces

 // IDL
 // In for example, "bank.idl".
 // A bank account.
 interface Account {
 	readonly attribute float balance;

 	void makeDeposit(in float f);
 	void makeWithdrawal(in float f);
 };

 // Derived from interface Account.
 interface CheckingAccount : Account {
 	readonly attribute float overdraftLimit;
 	// No new operations in this example.
 };

 interface Bank {
 	exception Reject { string reason; };

 	Account newAccount(
 		in string name) raises (Reject);
 	void deleteAccount(in Account a);
 	// An extra operation:
 	CheckingAccount newCheckingAccount(
 		in string name,
 		in float limit) raises (Reject);
 };

13.1.1 The Client: IDL Generated Types

 idl -jP idl_demo bank.idl

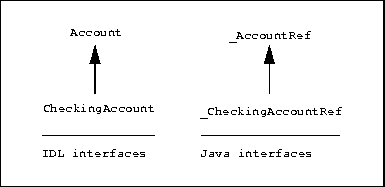

Figure 13.1: IDL and corresponding Java hierarchies

The interface Account maps to the following Java interface type:

 // Java
 // Automatically generated
 // in file _AccountRef.java.
 package idl_demo;

 public interface _AccountRef
 	extends IE.Iona.Orbix2.CORBA._ObjectRef {
 	public float balance()
 		throws IE.Iona.Orbix2.CORBA.SystemException;
 	public void makeDeposit(float f)
 		throws IE.Iona.Orbix2.CORBA.SystemException;
 	public void makeWithdrawal(float f)
 		throws IE.Iona.Orbix2.CORBA.SystemException;
 }

 // Java
 // Automatically generated
 // in file _CheckingAccountRef.java.
 package idl_demo;

 public interface _CheckingAccountRef
 	extends idl_demo._AccountRef,
 	IE.Iona.Orbix2.CORBA._ObjectRef {
 	public float overdraftLimit()
 		throws IE.Iona.Orbix2.CORBA.SystemException;
 }

IDL interface inheritance maps directly to the inheritance hierarchy of the generated Java interfaces, but does not map to the generated Java classes for those interfaces. Therefore, each Java class which implements an IDL generated Java interface must implement both the methods of that interface and the methods of all interfaces from which it inherits. Of course, this is an internal OrbixWeb implementation detail and does not impose any additional burden on the programmer.

This feature facilitates the mapping of IDL multiple inheritance to Java, as discussed in section 13.2.

The generated Java class which implements the _AccountRef interface is:

 // Java
 // Automatically generated
 // in file Account.java.
 package idl_demo;

 import IE.Iona.Orbix2._CORBA;
 import IE.Iona.Orbix2.CORBA.CompletionStatus;

 public class Account
 	extends IE.Iona.Orbix2.CORBA.BaseObject
 	implements idl_demo._AccountRef {
 	public float balance()
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public void makeDeposit(float f)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public void makeWithdrawal(float f)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public IE.Iona.Orbix2.CORBA._sequence_String
 		_baseInterfaces() {
 		...
 	}

 	public static final idl_demo._AccountRef
 		_bind()
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public static final idl_demo._AccountRef
 		_bind(String markerServer)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public static final idl_demo._AccountRef
 		_bind(String markerServer, String host)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public static final idl_demo._AccountRef
 		_narrow(IE.Iona.Orbix2.CORBA._ObjectRef src)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	...
 }

 // Java
 // Automatically generated
 // in file CheckingAccount.java.
 package idl_demo;

 import IE.Iona.Orbix2._CORBA;
 import IE.Iona.Orbix2.CORBA.CompletionStatus;

 public class CheckingAccount
 	extends IE.Iona.Orbix2.CORBA.BaseObject
 	implements idl_demo._CheckingAccountRef {
 	public float overdraftLimit()
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public float balance()
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public void makeDeposit(float f)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public void makeWithdrawal(float f)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public static final
 		idl_demo._CheckingAccountRef _bind()
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public static final
 		idl_demo._CheckingAccountRef _bind(
 		String markerServer)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public static final
 		idl_demo._CheckingAccountRef _bind(
 		String markerServer, String host)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	public static final
 		idl_demo._CheckingAccountRef
 		_narrow(IE.Iona.Orbix2.CORBA._ObjectRef src)
 		throws IE.Iona.Orbix2.CORBA.SystemException {
 		...
 	}

 	...
 }

 // Java
 // In file Client.java.
 package idl_demo;

 import IE.Iona.Orbix2.CORBA.SystemException;

 public class Client {
 	public static void main (String args[]) {
 		_BankRef bRef;
 		_AccountRef aRef;
 		_CheckingAccountRef cRef;

 		try {
 			// Bind to any bank object in the
 			// BankSrv server.
 			bRef = Bank._bind (":BankSrv");

 			// Obtain a new bank account.
 			aRef = bRef.newAccount ("Chris");

 			aRef.makeDeposit ((float) 56.90);
 		}
 		catch (idl_demo._Bank.Reject re) {
 			System.out.println (
 				"Error on newAccount():");
 			System.out.println (
 				"Account creation rejected "
 				+ "with reason: " + re.reason);
 			return;
 		}
 		catch (SystemException se) {
 			System.out.println (
 				"Unexpected system exception:");
 			System.out.println (se.toString ());
 			return;
 		}

 		try {
 			// Obtain a new checking account.
 			cRef = bRef.newCheckingAccount ("Susie",
 				(float) 100.00);

 			cRef.makeDeposit ((float) 87.78);
 		}
 		catch (idl_demo._Bank.Reject re) {
 			System.out.println (
 				"Error on newCheckingAccount():");
 			System.out.println (
 				"Account creation rejected "
 				+ "with reason: " + re.reason);
 			return;
 		}
 		catch (SystemException se) {
 			System.out.println (
 				"Unexpected system exception:");
 			System.out.println (se.toString ());
 			return;
 		}
 	}
 }

13.1.3 The Server: IDL Generated Types

The BOAImpl Approach

In order to implement IDL interface CheckingAccount using the BOAImpl approach, the programmer defines a Java class which inherits from class _boaimpl_CheckingAccount and implements the methods defined in this class. This has important consequences for the reusability of implementation classes.

Java does not support multiple inheritance of classes, so if an existing class implements a subset of the abstract methods defined for type CheckingAccount (for example, an existing class implements IDL type Account), it cannot be reused in the CheckingAccount implementation class. The CheckingAccount implementation class must directly implement all the operations of IDL interface CheckingAccount and all interfaces from which it inherits. This restriction severely limits the flexibility of the BOAImpl approach.

Interfaces Account and CheckingAccount could be implemented as follows:

 // Java
 // In file AccountImplementation.java.
 package idl_demo;

 public class AccountImplementation
 	extends _boaimpl_Account {
 	// Methods and variables to implement
 	// interface Account. As before.
 	...
 }


 // Java
 // In file CheckingAccountImplementation.java.
 package idl_demo;

 ...

 // Note - cannot inherit Account implementation,
 // so we must reimplement the methods for type
 // Account.

 public class CheckingAccountImplementation
 	extends _boaimpl_CheckingAccount {
 	// Reimplement all methods and variables
 	// defined in class AccountImplementation.
 	// As before.
 	...

 	// Implement new methods and variables
 	// for CheckingAccount.
 	float m_limit;

 	public currentAccountImpl ()
 		throws SystemException {
 		// Details omitted.
 	}

 	public currentAccountImpl
 		(float initialBalance, String name,
 		float limit)
 		throws SystemException{
 		// Details omitted.
 	}

 	// Method for new IDL attribute
 	public float _get_overdraftLimit () {
 		return m_limit;
 	}
 }

For example, if existing class AccountImplementation implements the methods defined in interface _AccountOperations, then class CheckingAccountImplementation could be coded as follows:

 // Java
 // In file CheckingAccountImplementation.java.
 package idl_demo;

 ...

 // Note - inherit Account implementation,
 // so we do not need to reimplement the methods
 // for type Account.

 class CheckingAccountImplementation
 	extends AccountImplementation,
 	implements _CheckingAccountOperations {
 	float m_limit;

 	public currentAccountImpl ()
 		throws SystemException {
 		// Details omitted.
 	}

 	public currentAccountImpl
 		(float initialBalance, String name,
 		float limit)
 		throws SystemException{
 		// Details omitted.
 	}

 	// Method for new IDL attribute.
 	public float _get_overdraftLimit () {
 		return m_limit;
 	}
 }

13.2 Multiple Inheritance of IDL Interfaces

 // IDL
 // In for example, "bank.idl".
 // A bank account.
 interface Account {
 	readonly attribute float balance;

 	void makeDeposit(in float f);
 	void makeWithdrawal(in float f);
 };

 // Derived from interface Account.
 interface CheckingAccount : Account {
 	readonly attribute float overdraftLimit;
 };

 // Derived from interface Account.
 interface DepositAccount : Account {
 };

 // Indirectly derived from interface Account.
 interface PremiumAccount :
 		CheckingAccount, DepositAccount {
 };

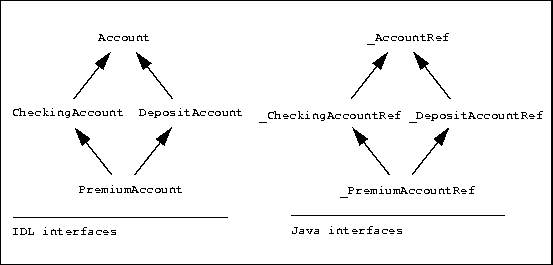

Figure 13.2: IDL and corresponding Java hierarchies

The inheritance hierarchy does not map to the Java classes which implement the generated Java interfaces. Consequently, each generated Java class implements the methods of the corresponding Java interface and of all interfaces from which it inherits. In this way, a client which holds _PremiumAccountRef object reference can invoke all inherited operations (from _AccountRef, _CheckingAccountRef, and _DepositAccountRef) directly on that reference.

On the server side, the implementation class requirements are identical to those for the single inheritance case. Using the BOAImpl approach, the implementor of type PremiumAccount must inherit from class _boaimpl_PremiumAccount and directly implement all methods for interface PremiumAccount and all types from which it inherits. Using the TIE approach, the implementation class must implement Java interface _CheckingAccountOperations, but may inherit implementation methods from an existing class. However, the absence of multiple inheritance support in Java implies that a multiple inheritance hierarchy of IDL interfaces can never map directly to the implementation classes for those interfaces.

Note that IDL forbids any ambiguity arising due to name clashes of operations and attributes when two or more direct base interfaces are combined. That is, it is illegal for an IDL interface to inherit from two or more interfaces with the same operation or attribute name. It is, however, legal to inherit two or more constants, types or exceptions with the same name from more than one interface, however every use of these must be qualified with the name of the interface (that is, an IDL scoped name must be used).
