ALResourceManager

Overview | API | Tutorial

What it does

ALResourceManager offers a safe way to manage resources. A resource can be: an exclusive use of motor, microphone, LEDs, CPU, stiffness parameter, camera settings, a ball...

ALResourceManager allows you to:

  • avoid that another behavior uses the resources you need
  • synchronize movement, LEDs, sounds...
  • Run specific actions when another behavior wants your resources. For example, stop properly a walk before stopping a behavior that walk.

If you create and run only one behavior, your behavior, you probably won’t need a resource management. You know exactly when you need resources and can manage it in a state machine for example. If you merge behaviors from different creators you may need to reserve resources that another behavior can also use.

How it works

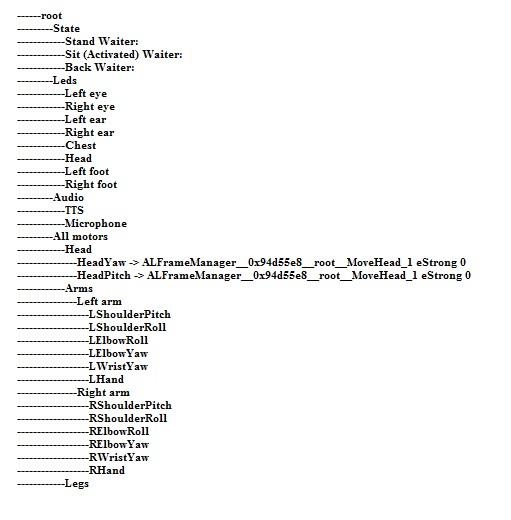

Resources follow a resource hierarchy

To see all resources and the corresponding owner: Run NaoQi, with your browser, go on address http://[naoqiIP]:9559, then resource manager and further information.

../../_images/3a-resourcetake.png

Taking a parent resource automatically takes all child resources.

Resource manager uses an object behavior hierarchy

Suppose you create a behavior to play football. NAO first search the ball without moving. If NAO finds the ball and walk, you want to be sure that resources are available before walking.

Resource manager allows taking a resource in a root object or root behavior, all child objects will automatically take the resource to parent but child can enter in conflict each others.

No deadlock

Resource manager can’t deadlock because all behaviors that request resource use a timeout.

Free CPU

Resource manager informs conflict without resolving the conflict, the operation takes no-cpu. The behavior is notified and decides to reject demand or release resources.

Resource management is explicit

Low level function call won’t reserve resource and will use their own and specific hidden resource management (a simple mutex most of the time). If you want to manage resource (probably share behaviors), before calling a method, you’ll need to reserve resources you need and release them after call.

Resource manager allows synchronizing a group of resources

You can reserve both head motors, text to speech and LEDs to be sure to synchronize movements, speech and LEDs.

The group of resources is managed exactly as one resource:

  • During a request, loosing one resource releases all resources.
  • The timeout is the addition of all resources wait.
  • Request a group cannot deadlock.

Performances and Limitations

Performances

The resource manager is free CPU.

Limitations

Resource allocation is explicit. If you want to resource manage a method, you need to make an explicit call to resource manager.

Getting started

Edit resources from Choregraphe

Easiest way to edit resource is to open the box resource GUI (right button on a box).

../../_images/resourcemanager.png

Play the box and check resource are taken on web browser or by running another box that use the same resources.

Call resource manager from python

# create proxy on resource manager
proxy = ALProxy("ALResourceManager","localhost",9559)

#createResource in root (parent resource is "")
proxy.createResource("newResource","")

#check resource is free
free = proxy.areResourcesFree(["newResource"])

# take resource
# waitForResource(resource name, owner name, callback to notify you that someone want the resource, timeout)
proxy.waitForResource("newResource", "newOwner", "callback", 1)

#release resource
proxy.releaseResource("newResource", "newOwner")
