How to update NAO systemΒΆ
< For real NAO only > < Not available on virtual robot >

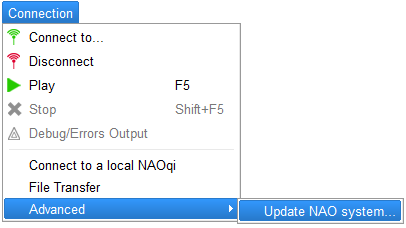

From the Connection menu in the Choregraphe menu bar, click on Advanced > Update NAO system.
Browse the NAO system image (*.gz for NAO v3.x or *.opn for NAO v4) on the DVD in Software > NAO OS with the file browser dialog. The image will then be uploaded through FTP on the robot.
When the upload is finished, you just have to restart your robot, and wait for the flashing process to be over. Do not switch the robot off while the flashing process is running.
Note
If something goes wrong during the system update process, and Choregraphe ends it prematurely, an error code is given in the popup.
Refer the NAO system update error code section.
Warning
Ensure that NAO is plugged to its adapter during the system update process.
Note
You can also flash the USB key outside Choregraphe. For more information refer the Software update section.
