Introduction

This tutorial explains how to deal with the foot planner restriction (clipping) and to be able to create its own planner.

Note

The tutorial is written in Python.

Download

You can download the foot step clipping algorithm here: almath_foot_clip.py

Please refer to the section: Python SDK Install Guide for any troubleshooting linked to python.

Code review

By using the ALMotionProxy::setFootSteps or ALMotionProxy::setFootStepsWithSpeed methods, you can create your own planner.

But ALMotion uses three clipping function to avoid collision or singularity. In this section we describe these algorithms.

Clip with maximum gait data

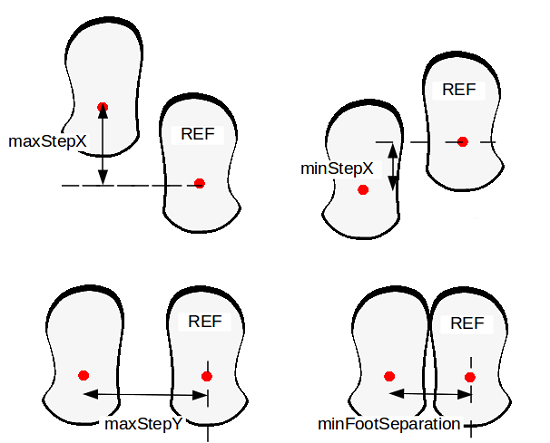

The table below gives the clipping value for a right support. (For a left support maxStepY and minFootSepration becomes negative).

Name Value Description
maxStepX 0.080 meters Maximum forward step
minStpeX -0.040 meters Maximum backward step
maxStepY 0.160 meters Maximum lateral step
minFootSeparation 0.088 meters Avoids foot collisions during lateral motion
maxStepTheta 0.52359 radian Maximum rotation step
../../_images/motion_foot_max_gait.png

Here, the python clipping algorithm with maximum gait data is presented:

def clipData(minValue, maxValue, value):
  ''' Clip value between two extremes. '''
  clipped = value

  if (clipped < minValue):
    clipped = minValue
  if (clipped > maxValue):
    clipped = maxValue

  return clipped


def clipFootStepOnGaitConfig(footMove, isLeftSupport):
  ''' Clip the foot move so that it does not exceed the maximum
      size of steps.
      footMove is an almath.Pose2D (x, y, theta position).
      isLeftSupport must be set to True if the move is on the right leg
      (the robot is supporting itself on the left leg).
  '''

  # Clip X.
  clippedX = clipData(minStepX, maxStepX, footMove.x)
  footMove.x = clippedX

  # Clip Y.
  if not isLeftSupport:
    clippedY = clipData(minFootSeparation, maxStepY, footMove.y)
  else:
    clippedY = clipData(-maxStepY, - minFootSeparation, footMove.y)
  footMove.y = clippedY


  # Clip Theta.
  clippedTheta = clipData(-maxStepTheta, maxStepTheta, footMove.theta)
  footMove.theta = clippedTheta

Clip with ellipse

To avoid to create singularity problem with inverse kinematics, we have choosen to clip the foot step data with an ellipsoid. In fact only pmaxStepX with maxStepY is not allowed.

We use the AL::Math:clipFootWithEllipse function (libalmath API reference).

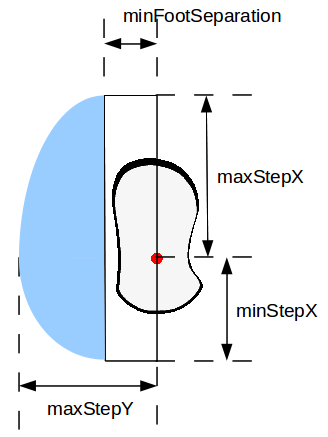

The figure below give an illustration of the allowed zone (blue in the picture).

../../_images/motion_foot_ellipse.png

Here, the python clipping algorithm with ellipse is presented:

def clipFootStepWithEllipse(footMove):
  ''' Clip the foot move inside an ellipse defined by the foot's dimansions.
      footMove is an almath.Pose2D (x, y, theta position).
  '''

  # Apply an offset to have Y component of foot move centered on 0.
  if (footMove.y < -minFootSeparation):
    footMove.y = footMove.y + minFootSeparation
  elif (footMove.y > minFootSeparation):
    footMove.y = footMove.y - minFootSeparation
  else:
    return

  # Clip the foot move to an ellipse using ALMath method.
  if footMove.x >= 0:
    almath.clipFootWithEllipse(maxStepX, maxStepY - minFootSeparation, footMove)
  else:
    almath.clipFootWithEllipse(minStepX, maxStepY - minFootSeparation, footMove)

  # Correct the previous offset on Y component.
  if footMove.y >=0:
    footMove.y = footMove.y + minFootSeparation
  else:
    footMove.y = footMove.y - minFootSeparation

Clip to avoid collision

The final clipping is about pTheta. If feet collide with the given pTheta, we found with a dichotomy algorithm the near value that is out of the collision.

We use the AL::Math:avoidFootCollision function (libalmath API reference) for the dichotomy algorithm.

The picture below illustrates this clipping. (The grey left foot print was the one given by the user and the black left foot print is the result of the clipping)

../../_images/motion_foot_no_collision.png

Here, the python clipping algorithm with ellipse is presented:

# Bounding boxes of NAO's feet.
rFootBoxFL = almath.Pose2D( 0.110,  0.038, 0.0)
rFootBoxFR = almath.Pose2D( 0.110, -0.050, 0.0)
rFootBoxRR = almath.Pose2D(-0.047, -0.050, 0.0)
rFootBoxRL = almath.Pose2D(-0.047,  0.038, 0.0)
rFootBox = almath.vectorPose2D([rFootBoxFL, rFootBoxFR, rFootBoxRR, rFootBoxRL])

lFootBoxFL = almath.Pose2D( 0.110,  0.050, 0.0)
lFootBoxFR = almath.Pose2D( 0.110, -0.038, 0.0)
lFootBoxRR = almath.Pose2D(-0.047, -0.038, 0.0)
lFootBoxRL = almath.Pose2D(-0.047,  0.050, 0.0)
lFootBox = almath.vectorPose2D([lFootBoxFL, lFootBoxFR, lFootBoxRR, lFootBoxRL])

def clipFootStepToAvoidCollision(footMove, isLeftSupport):
  ''' Clip the foot move to avoid collision with the other foot.
      footMove is an almath.Pose2D (x, y, theta position).
      isLeftSupport must be set to True if the move is on the right leg
      (the robot is supporting itself on the left leg).
  '''

  # Use ALMath method.
  almath.avoidFootCollision(lFootBox, rFootBox, isLeftSupport, footMove)
